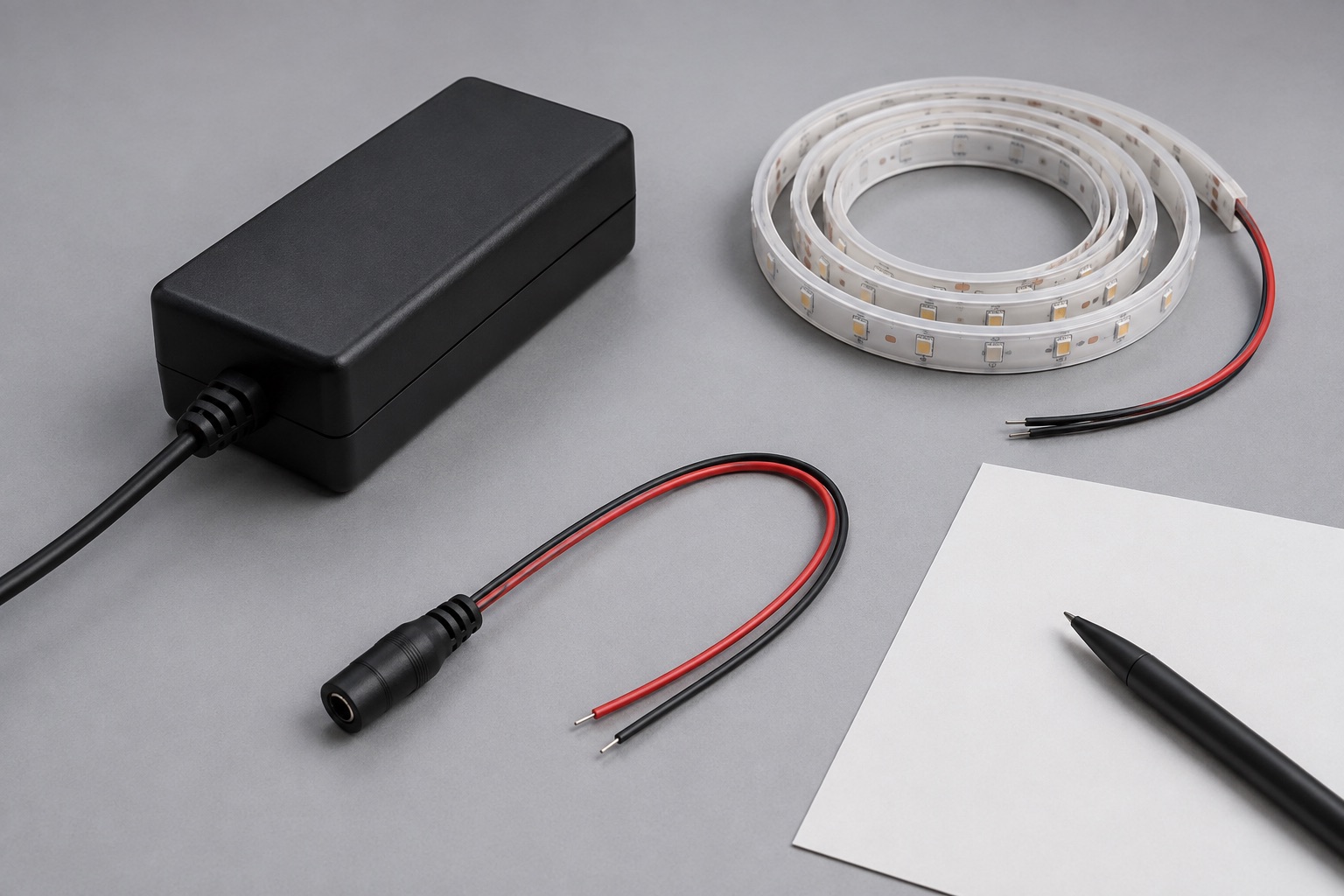

For a single-color, low-voltage constant-voltage LED strip, use a supply with the specified DC output, connect positive to positive and negative to negative through appropriately rated connections, and verify the full circuit before energizing it. If the installation uses a controller, follow its input and output diagram instead of bypassing it.
This guide covers DC-side connection planning for compatible low-voltage strips. It does not cover direct mains strips, bare LED arrays or AC terminal wiring. Have mains connections and the installation’s electrical protection completed by a qualified installer using the applicable product instructions and local requirements. Disconnect power before cutting, connecting or changing wiring.
Identify the system before making a connection
Start with the labels on the strip, supply and controller. Record the nominal voltage, strip type and maximum connected load. If the supply is not yet selected, use the LED strip power supply guide first.
Check the complete route, not just the two components at its ends. A barrel adapter, a clip connector and a controller in the same circuit each need suitable ratings. Physically mating connectors can still have incompatible polarity or insufficient current capacity.
Prepare a small connection schedule:
| Connection | Required information |
|---|---|
| Supply to controller or strip | DC voltage, polarity and maximum current |
| Controller to strip | Channel labels, control type and load per channel |
| Strip to connector | Strip width, pad arrangement and connector rating |
| Cable to terminal | Accepted conductor size and termination instructions |
The Waveform Lighting connection guide illustrates why plug-to-plug, plug-to-wire and wire-to-wire configurations need different connection hardware.
Choose the correct connection method
Matched plug connections
Use a documented compatible plug and socket pair. Check connector dimensions, polarity and current rating. Do not assume that a plug fitting into a socket proves the electrical match.
For a supplied lighting kit, retain its specified connection components unless the manufacturer approves an alternative. Changing an adapter may change the system’s electrical or mechanical suitability.
Solderless strip connectors
Select a connector designed for the actual strip width, pad layout and coating. A connector sold for one SMD strip may not fit a COB strip or another LED density. Align the contacts with the intended pads and close the connector according to its instructions.
Check that the connection is secure without forcing the body onto components. Do not trim away protective material unless the manufacturer’s method explicitly allows it and explains any required resealing.
Prepared wire or soldered connections
Prepared leads can simplify assembly when their ratings and terminations are documented. Where soldering is permitted, use a competent assembler and the strip manufacturer’s process. The joint needs mechanical support and insulation; a conductive joint alone is not a finished installation.
Do not leave exposed strands, unsupported joints or sharp bends at the pads. Connector selection examples are useful for identifying the interface, but the actual strip and connector instructions govern assembly. Waveform LED strip connection reference
Connect a single-color strip on the DC side
For a basic non-dimmed arrangement, the conceptual circuit is:
Compatible constant-voltage supply Single-color strip
DC positive (+) ------------------------ positive pad (+)
DC negative (-) ------------------------ negative pad (-)This is a polarity diagram, not a complete installation drawing. It does not specify conductor sizes, protection devices, enclosures or terminal details.
- Isolate the supply and confirm the equipment labels agree.
- Prepare the strip at an allowed cut point, if cutting is permitted.
- Assemble the specified DC connection, matching the marked polarity.
- Inspect contact alignment, insulation, strain relief and cable support.
- Lay out the strip for the manufacturer’s prescribed test; do not operate a tightly wound reel.
- Energize only after inspection and check the entire run.
- Isolate power again before correcting a connection or completing installation.
If there is a DC dimmer in the circuit, follow its direction of connection: the supply feeds the dimmer input, and the dimmer output feeds the strip. Its current capacity must suit the load.
Place RGB and tunable-white controllers correctly
Multi-channel strips require a compatible control arrangement. Do not infer channel order from wire color: read the actual pad and terminal labels. Analog RGB, RGBW and tunable-white strips can have different channel counts. Addressable strips also introduce signal requirements and are not interchangeable with analog products.
Manufacturer RGB installation documentation separates the supply, receiver and strip connections and calls for testing before permanent installation. Use the equivalent diagram for your selected equipment. Flexfire RGB multi-zone installation reference
Check both the controller’s combined load limit and individual channel limits. A total wattage figure does not prove that every intended channel combination is permissible.
Power separate strip runs in parallel
Several compatible branches can share a suitable supply when their combined load and the distribution design are within all ratings. A conceptual single-color arrangement is:
One compatible DC supply
+ / - ---- distribution ---- + / - to strip A
|--------- + / - to strip B
|--------- + / - to strip CEach branch receives the required supply voltage. This does not mean connecting separate strip loads in electrical series to divide the voltage. Nor does it authorize exceeding a strip’s maximum supported length by joining reels end to end.
Size the load with the LED power supply calculator guide, then have the branch wiring, connectors, protection and voltage drop checked for the actual layout. Do not connect the DC outputs of different supplies together unless the equipment and design explicitly support that arrangement.
Troubleshoot the connection systematically
Disconnect power before examining or changing a connection. Measurements on energized equipment should be carried out by someone competent to perform them safely.
| Symptom | Checks to make before replacing parts |
|---|---|
| Entire strip remains off | Correct supply, controller state, polarity and contact engagement |
| One branch remains off | Branch continuity, connector alignment and permitted cut point |
| Light flickers after movement | Loose contact, cable strain or damaged connection |
| Far end appears dimmer | Feed layout, voltage drop and manufacturer run-length limit |
| Wrong color appears | Channel mapping, controller type and selected operating mode |
| System cycles off and on | Load, thermal conditions and documented protection behavior |
These are diagnostic directions, not proof of a particular fault. Record which branches are affected and under what operating condition before requesting a replacement.
Frequently asked questions
Can I connect several strips to one supply?
Yes, if they require a compatible output and the supply and distribution system support their combined load. Review each branch separately.
Do wire colors prove the polarity?
No. Use the equipment markings and documentation. Wire-color conventions can vary.
Can I join the outputs of two power supplies?
Not as a general workaround for insufficient power. Output sharing needs equipment and a system design that explicitly permit it.
Why does a strip work before mounting but flicker afterward?
Mounting may introduce strain, pinching or poor contact, but other causes are possible. Isolate the system and inspect the changed parts of the assembly before reconnecting power.
Prepare a connection schedule for your supplier
Review TTLL’s LED strip power supply options. Send the strip model, branch lengths and controller details together with connector requirements and a layout drawing to make the component enquiry specific.
